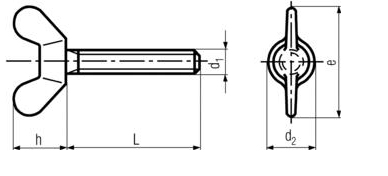

DIN 316 - Wing Screws Specifications

DIN 316 - Wing Screws Specifications

DIN 316 - Wing Screws Specifications


*All measurements in millimeters (mm)*

d h e d2
M4 8.5 18 6
M5 11 24 8
M6 15 30 10
M8 18 36 13
M10 23 48 17
M12 31 62 20
M16 35 70 26

MATRIAL : STAINLESS STEEL 304,304L, 316, 316L, 316TI, 317L, 309, 310, 904L, MONAL K-400, MONAL K-500, INCONAL -600, INCONAL-800, ALLY -625, ALLOY-825, SUS-630, UB-6,B8,B7,TITANIUM, HAST-ALLOY, ALLOY-20
