Hex Screws Metric Fine Thread (Part Thread) Specifications

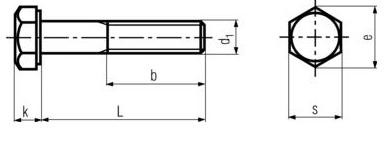

DIN 960 - Hex Screws, Metric Fine Thread - Part Thread Specifications

*All measurements in millimeters (mm)*

d1	s	e	k	b= to 125	b= to 150	b= to 200
M8 x 1	13	14.38	5.3	22	28
M10 x 1	17	18.9	6.4	26	32
M10 x 1.25	17	18.9	6.4	26	32
M12 x 1.25	19	21.1	7.5	30	36
M12 x 1.5	19	21.1	7.5	30	36
M14 x 1.5	22	24.49	8.8	34		40
M16 x 1.5	24	26.75	10	38		44
M18 x 1.5	27	30.14	11.5	42		48
M20 x 1.5	30	33.53	12.5	46		52
M20 x 2	30	33.53	12.5	46		52
M24 x 2	36	39.98	15	54		60

All information is strictly informative

MATRIAL : STAINLESS STEEL 304,304L, 316, 316L, 316TI, 317L, 309, 310, 904L, MONAL K-400, MONAL K-500, INCONAL -600, INCONAL-800, ALLY -625, ALLOY-825, SUS-630, UB-6,B8,B7,TITANIUM, HAST-ALLOY, ALLOY-20
