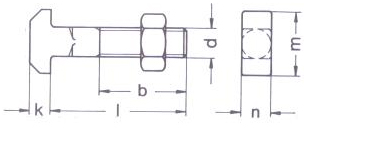

DIN 188 - Tee-Head Bolts With Double Nip Specifications

DIN 188 - Tee-Head Bolts With Double Nip Specifications

DIN 188 - Tee-Head Bolts With Double Nip Specifications


*All measurements in millimeters (mm)*

d b k m n
M8 22 5.5 18 8
M10 26 7 21 10
M12 30 8 26 12
M16 38 10.5 30 16
M24 54 15 43 24

MATRIAL : STAINLESS STEEL 304,304L, 316, 316L, 316TI, 317L, 309, 310, 904L, MONAL K-400, MONAL K-500, INCONAL -600, INCONAL-800, ALLY -625, ALLOY-825, SUS-630, UB-6,B8,B7,TITANIUM, HAST-ALLOY, ALLOY-20
