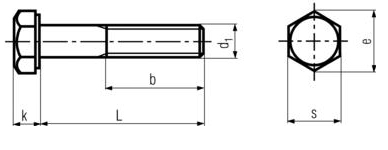

DIN 931 - Hexagon Head Screws Partially Threaded Specifications

*All measurements in millimeters (mm)*

d1	b to 125	b to 200	b over 200	k	e	s
M4	14	-	-	3	7.7	7
M5	16	-	-	4	8.8	8
M6	18	24	-	4	11	10
M8	22	28	-	5	14	13
M10	26	32	45	6	19	17
M12	30	36	49	8	21	19
M14	34	40	53	9	24	22
M16	38	44	57	10	27	24
M18	42	48	61	12	30	27
M20	46	52	65	13	34	30
M22	50	56	69	14	36	32
M24	54	60	73	15	40	36
M27	60	66	79	17	45	41
M30	66	72	85	19	51	46
M33	72	78	91	21	55	50
M36	78	84	97	23	61	55
M42	90	96	109	26	71	65
M45	96	102	115	28	77	70
M48	102	108	121	30	83	75

All information is strictly informative

MATRIAL : STAINLESS STEEL 304,304L, 316, 316L, 316TI, 317L, 309, 310, 904L, MONAL K-400, MONAL K-500, INCONAL -600, INCONAL-800, ALLY -625, ALLOY-825, SUS-630, UB-6,B8,B7,TITANIUM, HAST-ALLOY, ALLOY-20
