| d1 | s | e min | d2 | h max |
| M4 | 7 | 7.66 | 4.2 | |
| M5 | 8 | 8.79 | 5.1 | |
| M6 | 10 | 11.05 | 6 | |
| M8 | 13 | 14.38 | 8 | |
| M10 | 17 | 18.9 | 10 | |
| M12 | 19 | 21.1 | 12 | |
| M14 | 22 | 24.49 | 14 | |
| M16 | 24 | 26.75 | 16 | |
| M18 | 27 | 29.56 | 23 | 18 |
| M20 | 30 | 32.95 | 27.5 | 20 |
| M22 | 32 | 35.03 | 29.5 | 22 |
| M24 | 36 | 39.55 | 31 | 24 |
| M27 | 41 | 45.02 | 27 | |
| M30 | 46 | 50.85 | 30 | |
| M33 | 50 | 55.37 | 33 | |
| M36 | 55 | 60.79 | 36 |

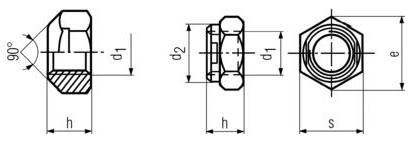

DIN 980 - Self-Locking Nuts Specifications
DIN 980 - Self-Locking Nuts Specifications
*All measurements in millimeters (mm)*
All information is strictly informative
MATRIAL : STAINLESS STEEL 304, 304L, 316, 316L, 316TI, 317L, 309, 310, 904L, MONAL K-400, MONAL K-500, INCONAL - 600, INCONAL - 800, ALLY - 625, ALLOY-825, SUS-630, UB-6, B8, B7, TITANIUM, HAST-ALLOY, ALLOY-20
