| d1 | b | t1 min | s | k max | d2 max |
| M4 | 14 | 1.48 | 3 | 2.8 | 7 |
| M5 | 16 | 1.88 | 4 | 3.5 | 8.5 |
| M6 | 18 | 2.38 | 5 | 4 | 10 |
| M8 | 22 | 2.88 | 6 | 5 | 13 |
| M10 | 26 | 3.35 | 8 | 6.5 | 16 |
| M12 | 30 | 3.85 | 10 | 7.5 | 18 |
| M14 | 34 | 4.35 | 12 | 8.5 | 21 |
| M16 | 38 | 5.35 | 14 | 10 | 24 |
| M20 | 46 | 6.32 | 17 | 12 | 30 |
| M24 | 54 | 6.82 | 19 | 14 | 36 |
| M30 | 66 | 8.82 | 22 | 17.5 | 45 |

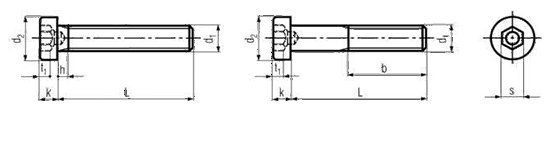

DIN 6912 - Low Head Socket Cap Screws With Pilot Specifications
DIN 6912 - Low Head Socket Cap Screws With Pilot Specifications
*All measurements in millimeters (mm)*
All information is strictly informative
MATRIAL : STAINLESS STEEL 304, 304L, 316, 316L, 317L, 309, 310, 904L, SUS-630, UB-6, B8, B7
