| d1 | d2 | s | c | i | l approx | t min |
| M10 x 1 | 14 | 5 | 3 | 8 | 11 | 5 |
| M12 x 1.5 | 17 | 6 | 3 | 12 | 15 | 7 |
| M14 x 1.5 | 19 | 6 | 3 | 12 | 15 | 7 |
| M16 x 1.5 | 21 | 8 | 3 | 12 | 15 | 7.5 |
| M18 x 1.5 | 23 | 8 | 4 | 12 | 16 | 7.5 |
| M20 x 1.5 | 25 | 10 | 4 | 14 | 18 | 7.5 |
| M22 x 1.5 | 27 | 10 | 4 | 14 | 18 | 7.5 |
| M24 x 1.5 | 29 | 12 | 4 | 14 | 18 | 7.5 |
| M26 x 1.5 | 31 | 12 | 4 | 16 | 20 | 9 |
| M27 x 2 | 32 | 12 | 4 | 16 | 20 | 9 |
| M30 x 1.5 | 36 | 17 | 4 | 16 | 20 | 9 |
| M33 x 2 | 39 | 17 | 5 | 16 | 21 | 9 |
| M36 x 1.5 | 42 | 19 | 5 | 16 | 21 | 10.5 |
| M38 x 1.5 | 44 | 19 | 5 | 16 | 21 | 10.5 |
| M42 x 1.5 | 49 | 22 | 5 | 16 | 21 | 10.5 |
| M45 x 1.5 | 52 | 22 | 5 | 16 | 21 | 10.5 |
| M48 x 1.5 | 55 | 24 | 5 | 16 | 21 | 10.5 |
| M52 x 1.5 | 60 | 24 | 5 | 16 | 21 | 10.5 |
| M56 x 2 | 64 | 32 | 5 | 20 | 25 | 14 |
| M64 x 2 | 72 | 32 | 5 | 20 | 25 | 14 |
Hexagon Socket Screw Plugs Specifications

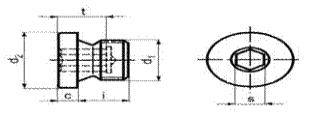

DIN 908 - HEXAGON SOCKET SCREW PLUGS SPECIFICATIONS
*All measurements in millimeters (mm)*
All information is strictly informative
MATRIAL : STAINLESS STEEL 304, 304L, 316, 316L, 317L, 309, 310, 904L, SUS-630, UB-6, B8, B7
