| d | Pitch | l |
| M-4 | 0.7 | 10mm TO 3 MTR |
| M-5 | 0.8 | 10mm TO 3 MTR |
| M-6 | 1 | 12mm TO 3 MTR. |
| M-8 | 1.25 | 12mm TO 3 MTR. |
| M-10 | 1.5 | 15mm TO 6 MTR. |
| M-12 | 1.75 | 20mm TO 6 MTR. |
| M-14 | 2 | 30mm TO 6 MTR. |
| M-16 | 2 | 35mm TO 6 MTR. |
| M-18 | 2.5 | 50mm TO 6 MTR. |
| M-20 | 2.5 | 50mm TO 6 MTR. |
| M-22 | 2.5 | 50mm TO 6 MTR. |
| M-24 | 3 | 60mm TO 6 MTR. |
| M-27 | 3 | 100mm TO 6 MTR. |
| M-30 | 3.5 | 100mm TO 6 MTR. |
| M-33 | 3.5 | 100mm TO 6MTR. |
| M-36 | 4 | 150mm TO 6 MTR. |
| M-39 | 4 | 200mm TO 6 MTR. |
| M-42 | 4.5 | 200mm TO 5 MTR. |
| M-45 | 4.5 | 250mm TO 5 MTR. |
| M-48 | 5 | 300mm TO 5 MTR. |
| M-52 | 5 | 350mm TO 5 MTR. |
| M-56 | 5.5 | 350mm TO 5 MTR. |
| M-60 | 5.5 | 350mm TO 5 MTR. |

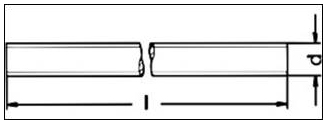

DIN 976 STUD BOLT - FULL THREAD
DIN 976 STUD BOLT - FULL THREAD
*All measurements in millimeters (mm)*
All information is strictly informative
MATRIAL : STAINLESS STEEL 304,304L, 316, 316L, 316TI, 317L, 309, 310, 904L, MONAL K-400, MONAL K-500, INCONAL -600, INCONAL-800, ALLY -625, ALLOY-825, SUS-630, UB-6,B8,B7,TITANIUM, HAST-ALLOY, ALLOY-20
