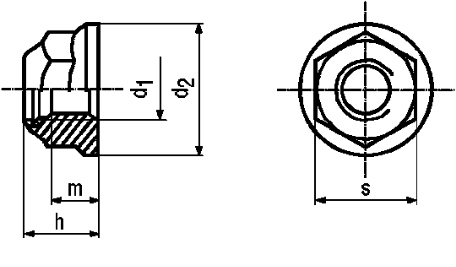

DIN 6926 - Self-Locking Hex Flange Nuts: Non Metallic Insert Specifications


*All measurements in millimeters (mm)*

d d2max. h max. m s max
M5 11.8 7.1 4.7 8
M6 14.2 9.1 5.7 10
M8 17.9 11.1 7.6 13
M10 21.8 13.5 9.6 15
M12 26 16.1 11.6 18
M14 29.9 18.2 13.3 21
M16 34.5 20.3 15.3 24

All information is strictly informative

MATRIAL : STAINLESS STEEL 304, 304L, 316, 316L, 316TI, 317L, 309, 310, 904L, MONAL K-400, MONAL K-500, INCONAL - 600, INCONAL - 800, ALLY - 625, ALLOY-825, SUS-630, UB-6, B8, B7, TITANIUM, HAST-ALLOY, ALLOY-20
