| d1 | e min. | s | m | h |
| M4 | 7.66 | 7 | 2.9 | 9.6 |
| M5 | 8.79 | 8 | 4.4 | 10.5 |
| M6 | 11.05 | 10 | 4.9 | 12 |
| M8 | 14.38 | 13 | 6.44 | 14 |
| M10 | 18.9 | 16 | 8.04 | 18.1 |
| M12 | 21.1 | 18 | 10.37 | 22.5 |
| M16 | 26.75 | 24 | 14.1 | 27.5 |
| M20 | 30 | 16.9 | 35 |

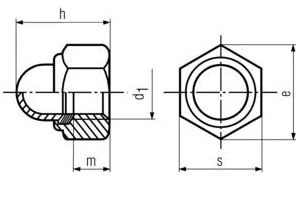

DIN 986 - Self Locking Domed Cap Nuts With Nylon Insert Specifications
DIN 986 - Self Locking Domed Cap Nuts With Nylon Insert Specifications
*All measurements in millimeters (mm)*
All information is strictly informative
MATRIAL : STAINLESS STEEL 304, 304L, 316, 316L, 316TI, 317L, 309, 310, 904L, MONAL K-400, MONAL K-500, INCONAL - 600, INCONAL - 800, ALLY - 625, ALLOY-825, SUS-630, UB-6, B8, B7, TITANIUM, HAST-ALLOY, ALLOY-20
