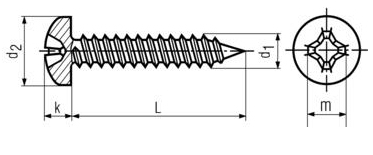

| d1 | d2 max | k max | m approx. | Cross Recess No. |
| 2.2 | 4.3 | 1.3 | 2.5 | H1 |
| 2.9 | 5.5 | 1.7 | 3 | H1 |
| 3.5 | 6.8 | 2.1 | 4.2 | H2 |
| 3.9 | 7.5 | 2.3 | 4.6 | H2 |
| 4.2 | 8.1 | 2.5 | 4.7 | H2 |
| 4.8 | 9.5 | 3 | 5.1 | H2 |
| 5.5 | 10.8 | 3.4 | 6.8 | H3 |
| 6.3 | 12.4 | 3.8 | 7.1 | H3 |
| 8 | 15.8 | 4.65 | - | - |
DIN 7982 - Flat CSK Self Tapping Screws, Specifications
DIN 7982 - Flat CSK Self Tapping Screws, Specifications
*All measurements in millimeters (mm)*
